V-16 high-output marine diesel engine
CAT 3516 — technical overview
CAT 3516, 3516B and 3516C references can identify different marine propulsion or auxiliary configurations. The 3516 is the 16-cylinder member of the Caterpillar 3500 family and is built around the same cylinder module as the 8-cylinder 3508 and the 12-cylinder 3512 — per-cylinder positions often carry across the family within a generation, while crankshaft, block and manifold positions do not. The complete engine model, serial number and installed build context are needed before component identity or compatibility is confirmed.
3516, 3516B and 3516C are three engines, not three spellings
The letter after the model number is the part of a 3516 enquiry most often left off, and it is the part that decides most of the answer. The 3500 family has used unit injectors from the start, so the difference between the generations is the control rather than the injector concept. The earliest 3516 is mechanically governed with mechanically actuated unit injectors worked through the valve gear and a mechanical rack. The B and C generations kept the unit injector and put an engine control module in charge of it, which changes the fuel system end to end: the pumps, the lines, the injectors, the actuation and the sensing are not shared with the earlier build, and neither is the diagnosis when something goes wrong with them.
Around the running gear the picture is different again. The 3500 family is built on a common cylinder module, so per-cylinder positions frequently carry across the eight-, twelve- and sixteen-cylinder members within a generation, while crankshafts, blocks and manifolds do not. That is useful and it is also a trap: a liner or a head that fits a 3512 of the same generation says nothing about whether a turbocharger, a camshaft or a wiring harness will.
The third thing on the plate that changes parts is the rating. Caterpillar marine ratings run from A through E, and they are duty ratings rather than power labels: the permitted load factor and the hours the engine may run in a year fall as the letter rises. An engine rated for continuous service and one rated for short high-load periods can share a model designation and be built with different components on the fuel and cooling side, so the rating letter belongs in the enquiry next to the model.
CAT 3516 spare parts supply scope
Running spares, planned maintenance components, and time-critical spare parts for the Caterpillar 3516, 3516B, and 3516C marine diesel engine.
- Pistons & piston rings
- Piston pins & connecting-rod small-end bushes
- Cylinder liners, seal rings & anti-cavitation rings
- Cylinder heads — complete & individual components
- Electronically controlled unit injectors (3516B, 3516C)
- Mechanical unit injectors & tips (early 3516)
- Fuel transfer pumps & fuel-line components
- Turbochargers: cartridge assemblies, nozzle rings & diffusers, shaft bearings & seals, repair kits
- Connecting rod bearing shells
- Main bearing shells
- Camshaft bearings
- Inlet & exhaust valves
- Valve seat inserts & guides
- Rocker arms, pushrods & tappets
- Jacket-water (JW) & sea-water (SW) pump assemblies, impellers, shafts & mechanical seals
- Oil pump components
- Gasket sets & seal kits
- Charge-air cooler: core, covers & O-rings
A 3500-family parts book is not opened at the model name — it is opened at the serial number prefix and the engine arrangement number from the information plate, and those decide which drawing a position belongs to. Two vessels can both run a 3516C and still take different cylinder heads, injectors or coolers; the rating letter on the same plate sets the duty the engine was sold at. A photograph of the plate, with the part number or description, is usually enough to start.

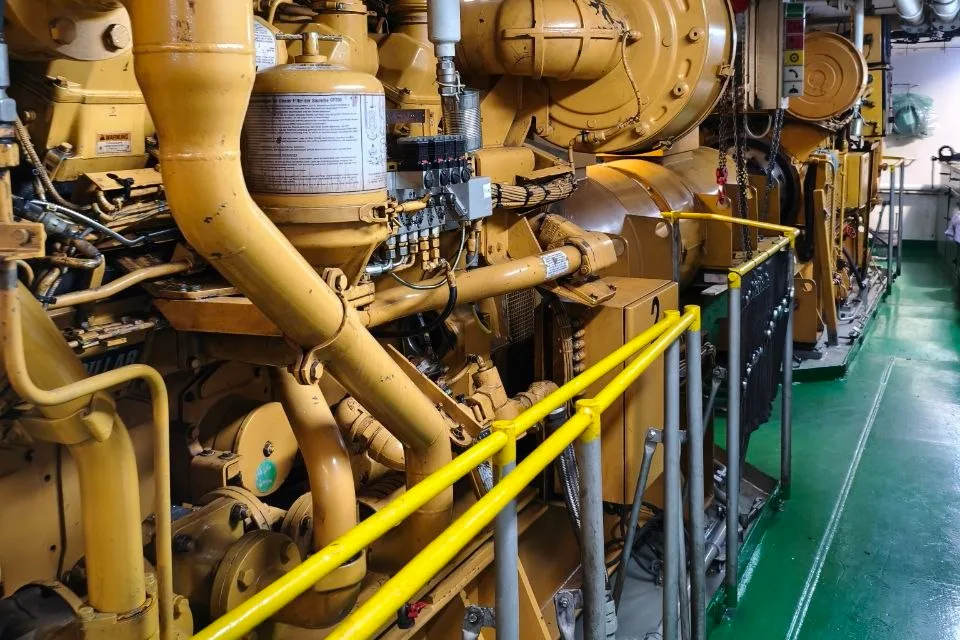

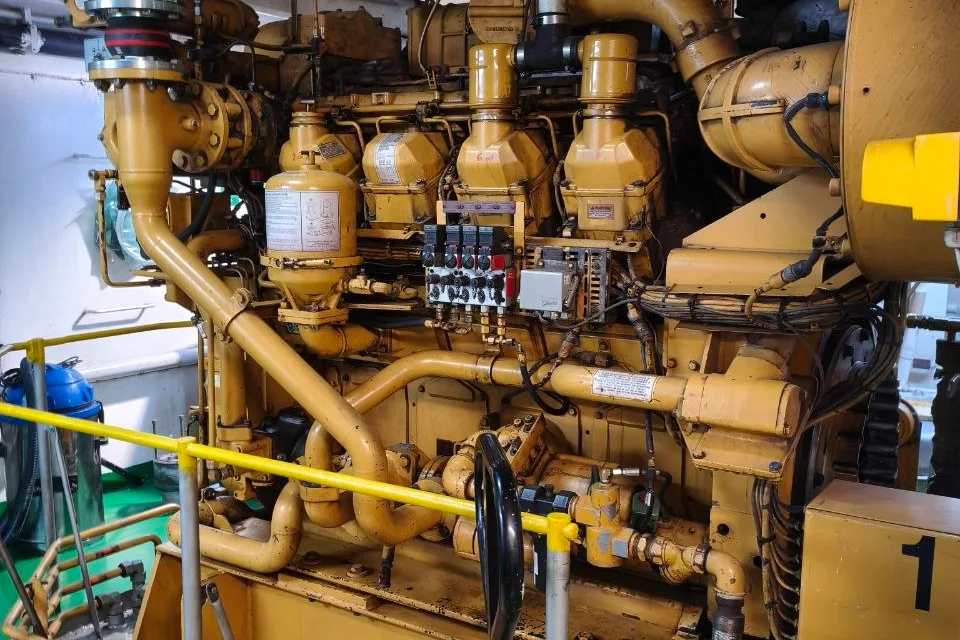

Caterpillar engines in a working engine room

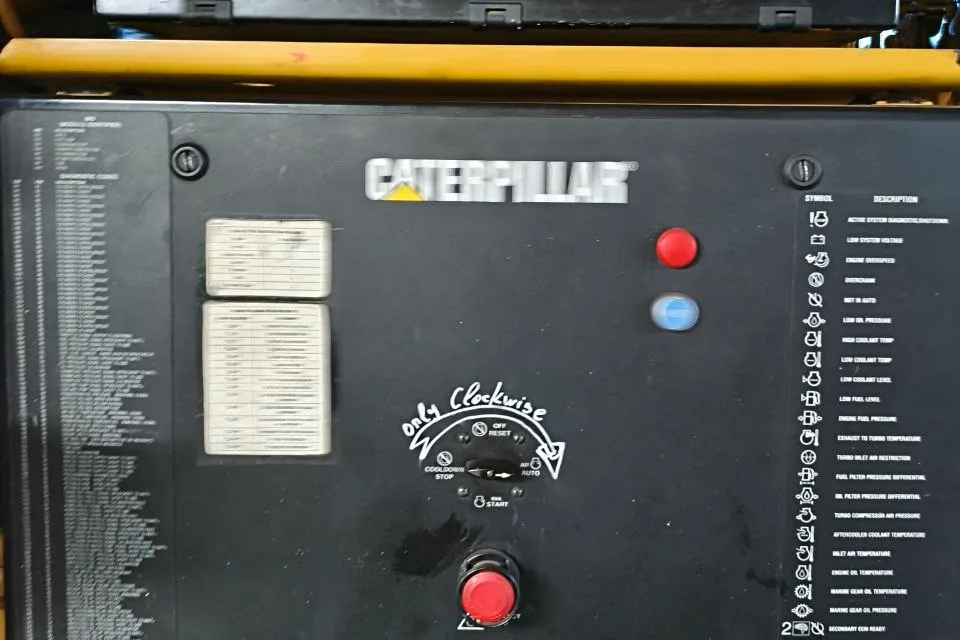

Photographs taken by Vessel Core aboard a vessel during a yard visit in September 2026. The engines shown are Caterpillar marine auxiliaries; their model was not recorded and is not claimed to be a 3516. They are here because the installed context — the access, the panel, the markings that stayed readable — is what a 3516 enquiry is actually written from.
Photographed by Vessel Core aboard a vessel during a yard visit in September 2026 and published with the vessel owner's permission. Caterpillar equipment appears here to show the installed context these requests come from. It is not a claim that Vessel Core supplied the parts shown or carried out work on them, and Vessel Core has no dealership, distribution or partnership agreement with the manufacturer named.
What a 3516 line is quoted from
Most of what follows is on one plate and takes one photograph. The exception is the position of the component, which nobody can read from a plate and which decides more lines than anything else on this engine.
- Full model as stamped, with the generation letter — 3516C, not 3516
- Engine serial number complete with its three-character prefix, photographed rather than transcribed
- Arrangement number from the same plate, which is what a parts route is keyed to on this maker
- Rating letter, A to E — in Caterpillar's terms unrestricted continuous (A), heavy duty (B), maximum continuous (C), intermittent duty (D) and high performance (E) — since it changes what was fitted on the fuel and cooling side
- Duty: propulsion, auxiliary generating set or a harbour or standby set, and the reduction gear make where it drives a shaft
- Bank and cylinder number the component came off, because a V16 has two banks and the positions are not interchangeable
- Injector described as a mechanically or electronically controlled unit injector, since the two generations differ in the control rather than the injector concept
- Turbocharger make and designation from its own plate, and how many are fitted, since this engine carries more than one
- Cooling: keel-cooled or heat-exchanger cooled, or radiator-cooled on some auxiliary sets, and the aftercooler circuit, which Caterpillar's 3516C sheets give as a separate circuit
- Old part number and the parts-book page it came from, treated as a starting point rather than a conclusion
- Bearing shells with the undersize stated, and ring sets quoted per cylinder rather than per ring
- Electronic control module part number where the line touches the electronics on a B or C engine
- Running hours since the last top overhaul and since the last full overhaul, given separately
- Photographs of the engine plate and of the component in place
Tools for this equipment: the Pt100 and thermocouple reader for the temperature sensors, the pressure gauge selector for the engine gauges and the O-ring size finder for loose O-rings. For running figures, the fuel consumption calculator turns the SFOC and the engine power into kg/h and t/day.
Route comparison for CAT 3516 engine parts.
Caterpillar OEM routes and verified alternative routes are reviewed side by side so buyers can choose the route that best fits approval needs, lead time and budget logic.
Cost-Aware Supply Options
Verified alternative routes for the CAT 3516 can be reviewed when approval requirements permit, with material and dimensional documentation checked at RFQ stage.
OEM or Alternative — Your Choice
For warranty-sensitive repairs or class-surveyed overhauls, an OEM-route review can be requested. For running spares and planned maintenance, verified alternative routes can be reviewed at your discretion.
Lead Time Confirmed at RFQ Stage
Lead time, availability and freight options are confirmed at RFQ stage based on part specification, approval requirements, vessel ETA and destination port.
Variant Identification Support
We check the specification for 3516, 3516B and 3516C parts against the engine serial number and model plate data — which reduces the risk of ordering a part that differs between variants.
Port-Aware Delivery Planning
Supply route, handover option and freight timing are reviewed against confirmed RFQ details, vessel ETA, port context, documentation needs and part availability before quotation. No fixed delivery commitment is made before availability and route are confirmed.
EU-registered company
Vessel Core OÜ is registered in Estonia (registry code 17028043, VAT EE102773714), with open company details, a named RFQ contact and a clear way for buyers to verify the company.
CAT 3516 marine parts — common questions
What is the CAT 3516 and where is it used in marine applications?
The CAT 3516 is the 16-cylinder, four-stroke member of Caterpillar's 3500 family of high-speed diesels, built both as a propulsion engine and as an auxiliary or generating-set engine. Caterpillar's 3516C marine sheets give it heat-exchanger or keel cooling and list typical vessels by rating, from tugboats and freighters on the continuous A rating to crew and supply boats, ferries, offshore service boats and harbour tugs on the B and C ratings. Send the complete model, the serial number, the arrangement number and the installed application so the requested components can be checked against the correct build.
Which CAT 3516 spare parts do you supply most frequently?
CAT 3516-family RFQs can include pistons and rings, liners, cylinder heads, injectors, fuel-system components, turbocharger parts, bearings, valve components, water-pump assemblies and gasket kits. Confirm the exact 3516, 3516B or 3516C build before review.
Can you supply parts for both the 3516B and 3516C variants?
Yes. Vessel Core can review and supply parts for the 3516, 3516B and 3516C variants. The B and C are separate generations rather than revisions of one build, and a number of parts on the fuel, air and control side are not interchangeable between them; Caterpillar's own 3516C marine sheets describe electronically controlled unit injectors, dual turbochargers and a separate-circuit aftercooler. At RFQ stage we confirm the variant and the engine serial number so parts are checked against the actual build.
Are verified alternative routes for CAT 3516 parts cheaper than the OEM route?
No, not by default. Alternative routes are reviewed by technical fit, availability, documents and buyer approval, not only by price. Verified alternative routes for CAT 3516 parts can be reviewed when approval requirements permit. Documentation, dimensional data and material evidence are checked at RFQ stage. For warranty-sensitive or survey-critical work, an OEM-route review can be requested.
What does the rating letter on a CAT 3516 plate change?
More than the output. Caterpillar marine ratings run from A through E and are duty ratings: the permitted load factor and the hours the engine may run in a year fall as the letter rises. Two engines with the same model designation and different rating letters can be built with different components on the fuel and cooling side, so send the rating letter with the model, the generation letter and the serial number.
Will a liner or cylinder head from a 3512 fit my 3516?
Possibly, and it is checked rather than assumed. The 3500 family is built on a common cylinder module, so per-cylinder positions frequently carry across the eight-, twelve- and sixteen-cylinder members within a generation, while crankshafts, blocks and manifolds do not. A head that fits a 3512 of the same generation says nothing about a turbocharger, a camshaft or a wiring harness, and the parts book is opened at the serial number prefix and the arrangement number, not at the model name.
Is Vessel Core connected to Caterpillar?
No, and there is no agreement of any kind. Vessel Core holds no dealership, distribution, representation or partnership agreement with Caterpillar, and quoting a component against the 3516, 3516B or 3516C designations implies no approval by the maker and no claim of interchangeability.
